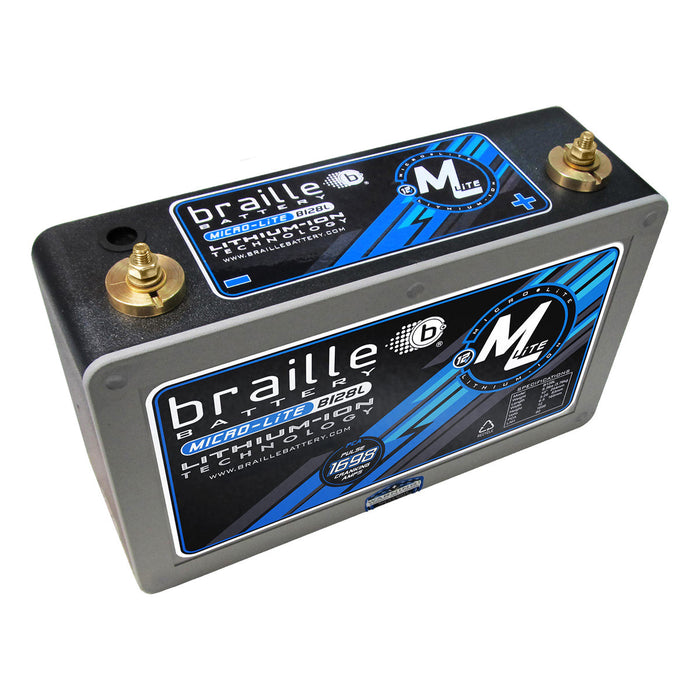

Braille B128L-M6 Micro-Lite Lithium Battery (Metric M6 Stud)
Braille B128L-M6 Micro-Lite lithium battery, with M6 threaded male terminal posts. Braille's exclusive technology allows the direct implementation of the high power lithium technology with Alternators and common charging systems.
The B128L-M6 is the most popular model in the Micro-Lite line and currently used in every car in the DTM (Audi, BMW, Mercedes), SuperGT (Lexus, Nissan, Honda, Subaru) and Australian V8 Supercars (Holden, Ford, Nissan, Mercedes), along with P1, P2 and GT cars in endurance racing in the USA and abroad. New for 2017, the new IMSA DPi cars of Cadillac/Dallara are factory equipped with the B128L lithium battery!!
Braille Lithium delivers a higher, cleaner voltage which improves the performance of every electrical component and has shown to provide:
|
|
|
|
|
|
|
|
To get all these benefits in one simple step makes it a very cost effective upgrade!!
![]()
Physical Specs:
| BCI Group | 1/2 Group 34 | Width | 3.15" / 80mm |
| Weight | 8.3lbs / 4kg | Height | 6.15" / 156mm |
| Length | 10.15" / 258mm | Polarity | Right Side Positive |
![]()
Performance Specs:
| Voltage | 12.8V | Full Voltage Charge | 14.4V-14.6V |
| Pulse Cranking Amps (PCA) | 1698 | Amp hour (Ah) | 22.5 |
| Pulse Discharge Current (PDC) | 1125 | Life Cycle @ 10% DOD | 5000 |
